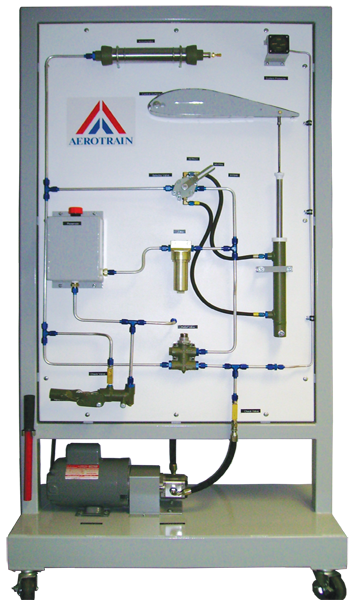

The Model AS-10 Hydraulic System Trainer provides hands-on training to the students so that they could understand the function, identify components, and troubleshoot a fully functional hydraulic system. Model AS-10 is a complete standalone trainer designed such that each component can be removed, overhauled, reinstalled, and functionally tested. A simulated flight control surface is operated to demonstrate the principle of hydraulic-actuated flight controls. Supplied with CBT to enhance students’ assimilation of hydraulic systems found on modern aircraft.

Product Features:
Fully Functional

All components are operational, removable, and re-build able. Parts kits for these common components are available through many parts dealers.

Reliable:

The components installed on this completely operational trainer are either new or completely disassembled, resealed, cleaned and painted or chemically treated for years of trouble-free operation.

Actuator Sequencing:

Model AS-10 demonstrates actuator sequencing. The actuator has a hydraulically sequenced double-check ball to time the main actuator with fluid pressure. Electrically switched valve may be installed as an optional item.

Portable Stand:

The ergonomically-designed trainer is configured as vertical standing panel, on caster wheels with brakes. The white backboard and iron frame make this a durable, and presentable trainer.

Training Manuals:

Trainer is supplied with a complete curriculum/operation manual. Both instructor and student manuals are in full color.

Computer-Based Training

The trainer is supplied with free CBT that covers the essential topics in hydraulic training.

Specifications

• Fluid Reservoir (various capacities available)
• Rotary vane or gear hydraulic pump (depending on availability) with electrically driven motor, powered by 110 volt AC/60 Hz or 220V AC/50 Hz
• Aircraft hydraulic cylinder (dual acting), sequenced by a sequencing valve.
• Pressure Gauge (direct reading)
• Check valve
• 4-way selector valve
• Hand Pump
• Filter Assembly
• Pressure relief valve (adjustable within safe limits for students)
• Accumulator Assembly
• Complete curriculum with schematics, and User / Training Manual
• Large, laminated, colored schematic poster of system plumbing.
