The model AS-08 Aircraft Pneumatic System Trainer is designed to provide hands-on training on a functional pneumatic system that uses actual aircraft parts. The system represents a pneumatic system that is used as an emergency backup for hydraulic system. A typical example is emergency braking system in case of hydraulically actuated brake failure.

The trainer can be operated by a switch which allows the air pressure from a reservoir to operate an actuator.The reservoir can be refilled after use from any pressurized air source like shop air or air compressor commonly found in AMT schools.

The Model AS-08 is installed with the following components:

• Pneumatic Reservoir
• Filler Valve
• Pneumatic Filter
• Pneumatic Pressure Gauge
• Relief Valve
• Check Valve
• Solenoid Control Valve
• Shuttle Valve
• Pneumatic Actuator
• All necessary fittings and plumbing

The pneumatic components are mounted on a vertical panel supported on a durable, moveable steel frame,with sturdy casters.

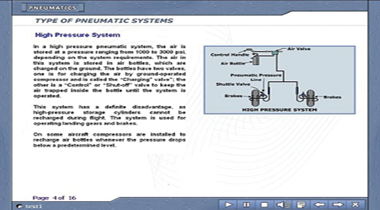

Computer Based Training (CBT)

A CBT courseware is included with the Model AS-08, which covers the system description and components’ details. A training manual is also included.
